Application

 Usually used in conjunction with display instruments, recording instruments, electronic computing, etc. Directly measure the surface temperatures of liquids, vapors, and gas media, as well as solids, within the range of 0 ° C to 1300 ° C in various production processes.

FEATURES

 ·Various ex-prooftype,good explosion-proof,performance;

·Spring loaded temperature sensing element with good vibration resistance;

·Large temperature measurement range

·High mechanical strength and good pressure resistance

Operating principle

The electrode of a thermocouple is composed of two different conductor materials. When there is a temperature difference between the measurement end and the reference end, a thermoelectric potential is generated, and the working instrument displays the temperature value corresponding to the thermoelectric potential.

Main technical parameters

Executive Standard

 IEC584

 IEC1515

 GB/T16839-1997

 JB/T5582-91

Insulation resistance at normal temperature

 The thermocouple has an ambient temperature of 20 ± 15 ° C, a relative humidity of not more than 80%, and a test voltage of 500 ± 50V (DC). The insulation resistance between the electrode and the outer casing is>1000 Ω. m.

Measurement range and tolerance

Indication of Exploion-proof Function

Temperature Group:T1-T6

Ex-Proof Class:A,B,C

Electric Equipment for plant

Explosion Separation Type

Intrinsic Safety Type

Electric Equipment Category

I:Electric Equipment for Coal Mine Well

II:Electric Equipment for plant

Explosion-Proof Class

The explosion-proof level of explosion-proof thermocouples is divided into three levels: A, B, and C based on their maximum safety clearance for use in explosive gas mixtures.

Temperature Group

It include T1--T6 according to maximum surface temperature allowed of open part.

Explosion-proof Class

EXdII□T□

EXiaII□T□

EXibII□T□

Protection Box:IP65

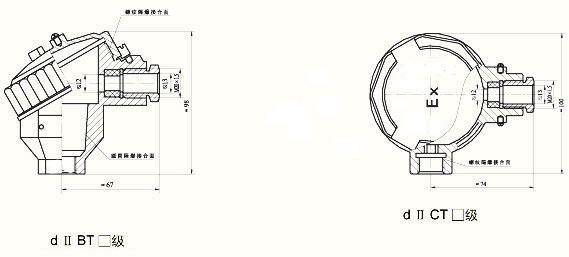

Junction box

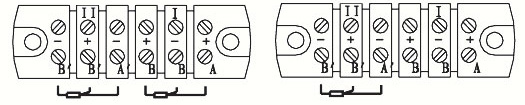

13、Terminal

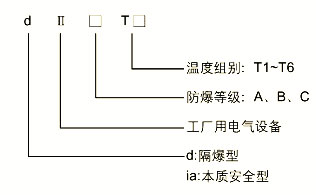

Type Naming Method
