一、概述

The TL-S2 series digital pressure gauges are low-power and high-precision digital pressure gauges, powered by batteries. The product adopts a 304 stainless steel shell and connector, with a built-in high-precision pressure sensor and a large-sized LCD display, which is sturdy, durable, and has strong media compatibility.

This series of products has multiple functions such as zero clearing, backlighting, on/off, unit switching, and low voltage alarm peak recording. It can measure non corrosive media such as gases, liquids, oil, etc. that do not corrode stainless steel.

二、技术特点

1. 304 stainless steel shell, large LCD screen, beautiful product

2. 60/80/100mm dial optional, radial

3. Functions such as unit switching, zero clearing, backlighting, on/off, peak recording, etc

4. Powered by two No. 7 batteries and designed for low power consumption, it can last up to 12 months

三、产品应用

Supporting instruments and meters, mechanical equipment, medical equipment, replacing pointer pressure gauges

四、基本参数

Range	0~0.1,0.16,0.25...1...1.6...10...60...100MPa
	0~2,5,10,16,25,40...100KPa
	(-0.1~0.1...0.6MPa)(-60~60)KPa(-40~40)KPa...(-10~10)KPa
Overload pressure	120%
Display	LCD screen (white backlight)
Dial size（mm）	100,80,60
Accuracy class	0.2%FS,0.4%FS,1%FS
Power supply	3V（AAA battery）
Long term stability	Typical: ± 0.2% FS/year
Operation temperature	0~40℃
Compensation temperature	0~40℃
Electrical protection	Anti electromagnetic interference design
Measurement medium	Gas, water, oil, etc
process connection	M20*1.5,G1/4,NPT1/4 Or customized threads
Joint material	304 SS
Shell material	304 SS

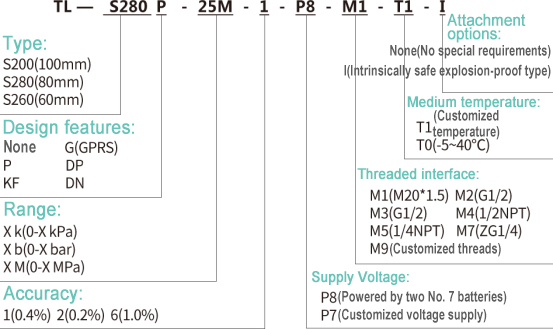

五、选型表

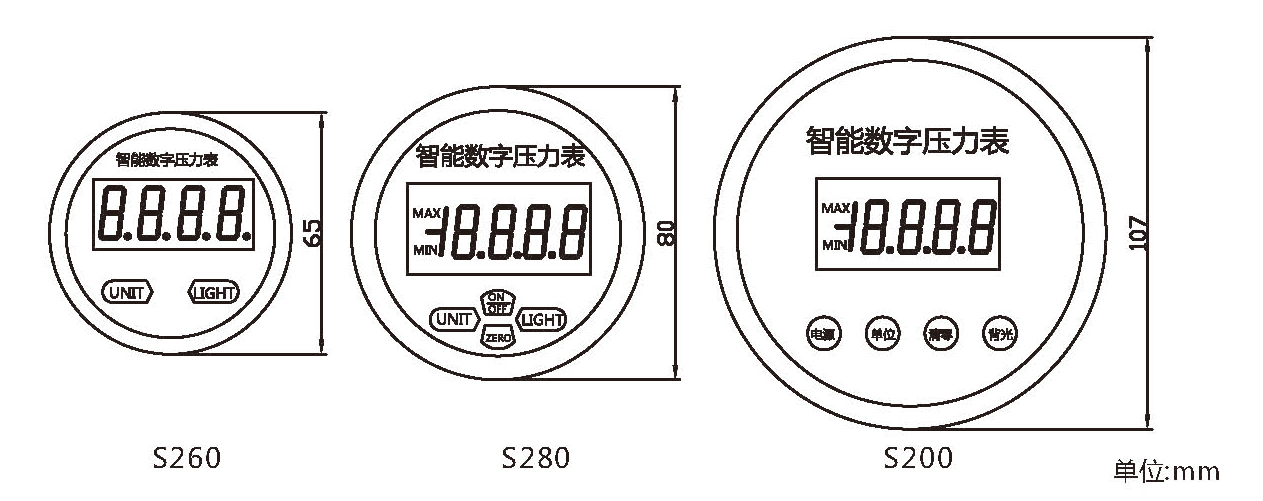

六、尺寸图

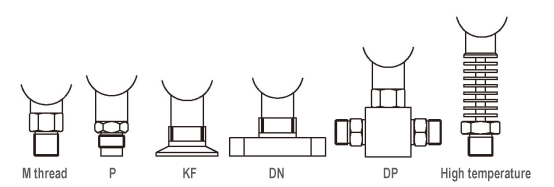

七、接口形式
