TX3351-DP Differential pressure transmitters are used to measure the liquid level, density, pressure and flow of liquid, gas or steam，then convert it into 4～20mADC HART current signal output。 TX3351-DP can  communicate with  RST375 handheld terminal or RSM100 Modem for parameter setting, process monitoring, etc.



 Physical specifications

 Material

Measuring capsule：SS 316L

Diaphragm：SS 316L、   Hastelloy C

Connect Flange：SS 304

Nuts and bolts：SS（A4）

Filling Liquid：   silicone oil

Seal ring：   （NBR）、 （FKM）、

 （PTFE）

Transmitter housing： Aluminum alloy and sprayed with epoxy resin

Housing sealing ring： （NBR）

Nameplate： SS 304



Weight ：3.3kg（Not included：LCD、Mounting bracket、Process connection）

Potection Class of Eclosure：IP67

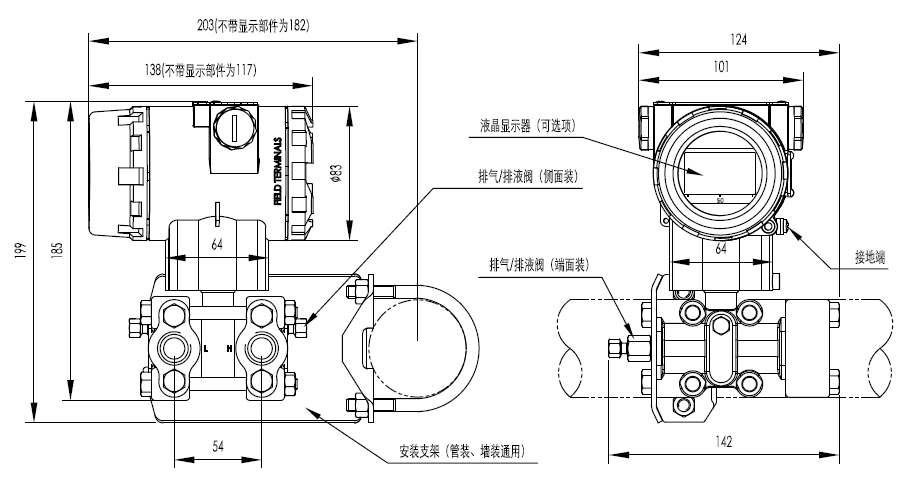

SIZE                                                               （mm）

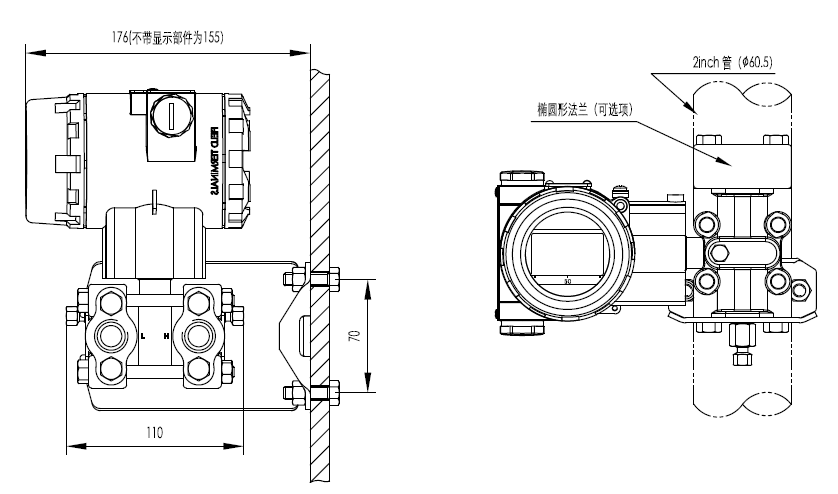

水平配管连接方式（侧面）                    水平配管连接方式（正面）







墙装连接方式                                  垂直配管连接方式

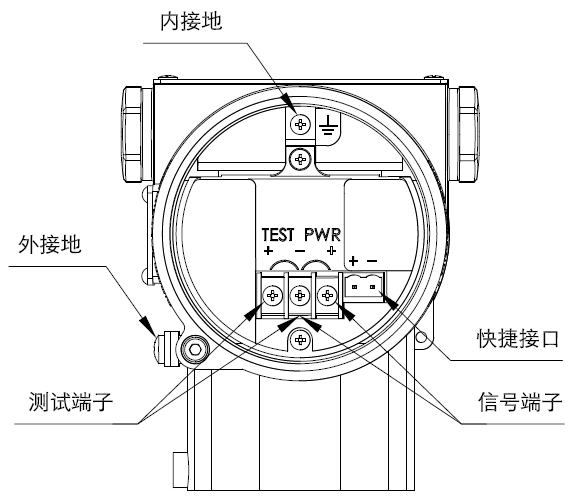

 Electrical connection diagram

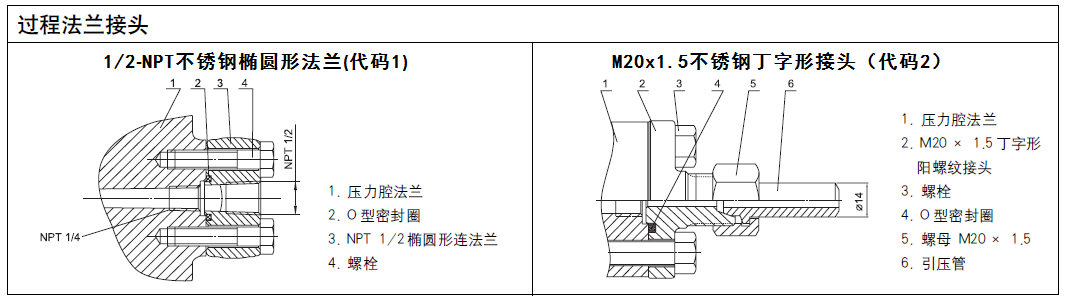

Process connection description



The code form of Model and specification
